DETAILS

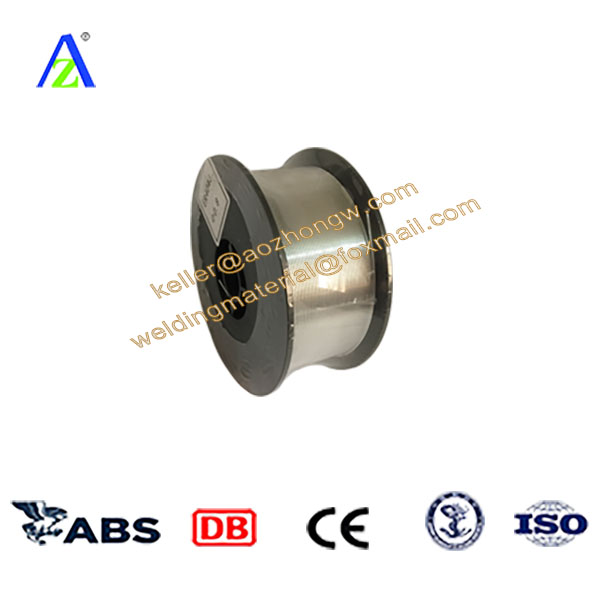

Aluminium welding wire ER5356

Model: ER5356

Material: aluminium alloy

Diameter: MIG 0.8-2.0 mm; TIG 1.6-5.0 mm

FEATURES & APPLICATIONS ABOUT ER5356 MIG

l  A general purpose Aluminium Alloy Wire containing 5% magnesium provides excellent corrosion resistance and high joint strength

l  Adapt to shipbuilding and offshore, power generation, repair and maintenance and railway industry etc.

FEATURES & APPLICATIONS ABOUT ER5356 TIG

l  A general purpose Aluminium Alloy Rod containing 5% magnesium provides excellent corrosion resistance and high joint strength

l  Adapt to shipbuilding and offshore, power generation, repair and maintenance and railway industry etc.

STANDARDS

AWS: A5.10 ER5356

EN ISO18273 S AL5356(AL Mg 5)

BS: 2901 5356(NG6)

MECHANICAL PROPERTIES

Melting Point:      635 ℃

UTS N/mm²:        275

Hardness BHN:   65

CHEMICAL COMPOSITION:

CURRENT TYPE

DC+ for MIG

AC for TIG

SHIELDING GAS

Pure Argon

MANUFACTURER’S APPROVALS

DB CE ABS AWS CCS ISO

BRAND NAME

AOZHONG

CUSTOMIZED SERVICE

OEM, ODM

PLACE OF ORIGIN

Changzhou, Jiangsu Prov., China

Free sample for validation

MOQ: 1000 KG(500 KG for initial time)

SUPPLY CAPABILITY

At least 30 Tons per Week

LEADTIME

Within one week for 5000 KG commonly
