DETAILS

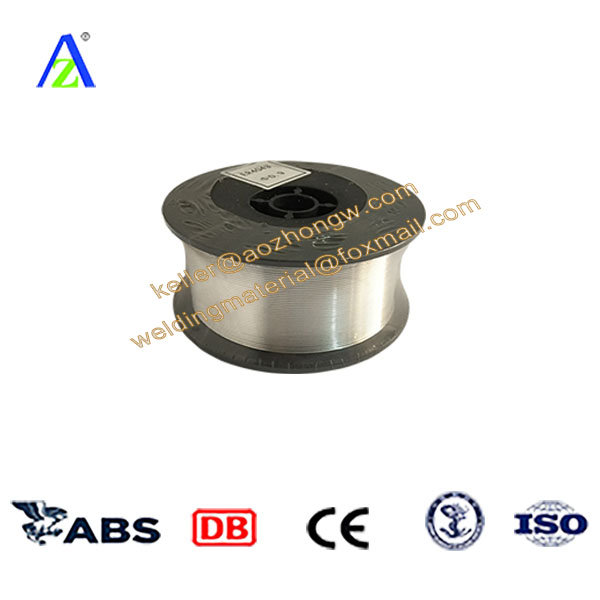

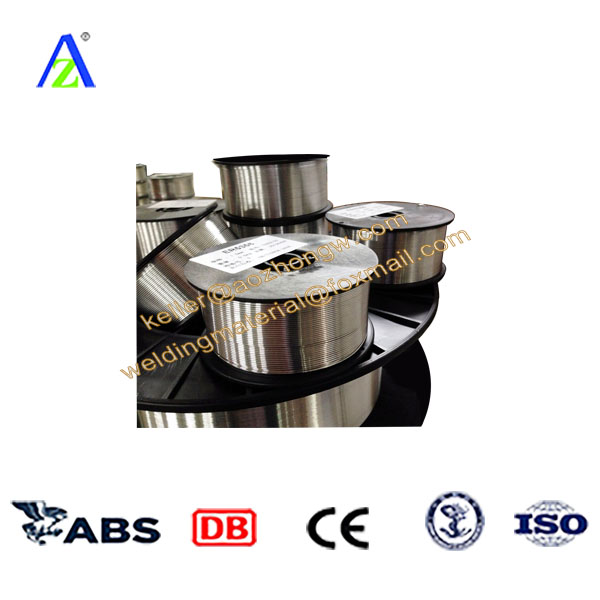

Aluminium welding wire ER4047 MIG 0.8 mm 0.5 kg/spool-D100

Model: ER4047

Material: aluminium alloy

Diameter: MIG 0.8-2.0 mm; TIG 1.6-5.0 mm

FEATURES & APPLICATIONS ABOUT ER4047 MIG

l  Excellent corrosion resistance and a low melting point which allows thin Aluminium sheet to be successfully MIG welded

     (Note: weld will discolour if anodized)

l  Adapt to Automotive, shipbuilding and offshore, repair and maintenance etc.

l  Aluminium alloy containing 12% Silicon

FEATURES & APPLICATIONS ABOUT ER4047 TIG

l  Excellent corrosion resistance and a low melting point

    (Note: weld will discolour if anodized)

l  Melts at 80℃ lower than pure Aluminium, can be used as a gas brazing rod

l  Adapt to Automotive, shipbuilding and offshore, repair and maintenance etc.

l  Aluminium alloy containing 12% Silicon

STANDARDS

AWS: A5.10 ER4047

EN ISO18273 S AL4047(AL SI 12)

BS: 2901 4047A(NG2)

MECHANICAL PROPERTIES

Melting Point:     580 ℃

UTS N/mm²:       180

Hardness BHN:   50

CHEMICAL COMPOSITION:

CURRENT TYPE

DC+ for MIG

AC for TIG

SHIELDING GAS

Pure Argon

MANUFACTURER’S APPROVALS

DB CE ABS AWS CCS ISO

BRAND NAME

AOZHONG

CUSTOMIZED SERVICE

OEM, ODM

PLACE OF ORIGIN

Changzhou, Jiangsu Prov., China

Free sample for validation

MOQ: 1000 KG(500 KG for initial time)

SUPPLY CAPABILITY

At least 30 Tons per Week

LEADTIME

Within one week for 5000 KG commonly

PACKAGE & DELIVERY

Packet Package(MIG): 0.5/2/6/7 kg/spool or 1 pound(0.45 kg)/spool,

                                      Sealed or vacuum package optional;

   customized acceptable;

Packet Package(TIG): 2.5/5 kg/plastic tube; 5/10 kg/box;

    Sealed before packing; covering box optional;

    customized acceptable;

Final Package: plywood pallet(plywood case optional);

Port: Shanghai Port(priority), Ningbo Port, Tianjin Port or other port in China.
